RXM-6SFNUS

10 Gigabit Ethernet to 10G SFP+
PoE++ L2 Media Converter

■ Auto MAC address learning
■ N-Way auto-negotiation
■ Auto MDI/MDIX support
■ SLink Layer Discovery Protocol (LLDP)
■ Support Link Fault Pass-Through (LFPT)

Overview

RXM-6SFNUS is an 10 Gigabit Ethernet to 10G SFP+ PoE++ L2 Media Converter. Adopt professional RTL9303C switch chip. The Media Converter providing management capabilities, greater flexibility, installation convenience, high performance. It is the best option for enterprise remote management and monitoring.



Specifications

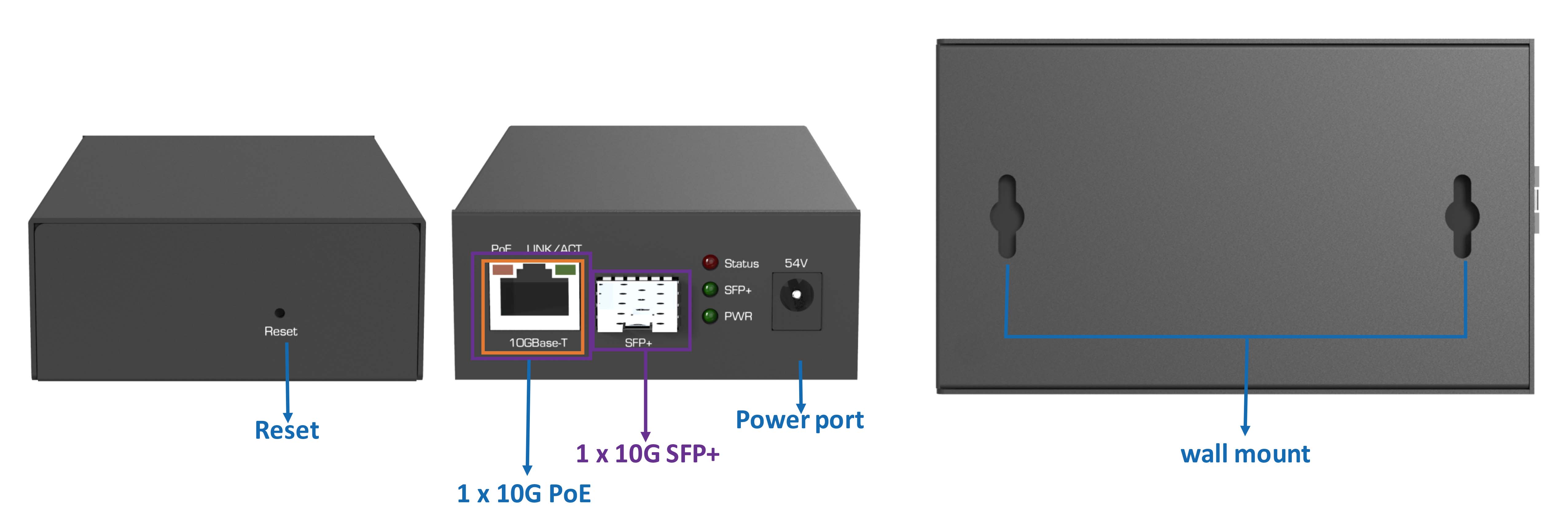

I/O ports
  • 1 x 10G/1G SFP+ slot
  • 1 x 10G/5G/2.5G/1G/100Mbps Ethernet port
Standards
  • IEEE802.3u 100BASE-T
  • IEEE802.3ab 1000BASE-T
  • IEEE802.3bz 2.5G BASE-T
  • IEEE802.3an 10GBASE-T
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3ae 10GBASE-R
MAC address table
  • 16K
Jumbo Frame
  • 12KB
SPI Flash
  • 32MB
DDR3 ram
  • 256MB
PoE Ports
  • 2-port IEEE802.3 af/at/bt
LED Define
  • STATUS: Red LED
  • PWR: Green LED
    •   Off: power off or fail
      On: power on
  • SFP+: Green LED
    •   On: 10G/1G connected
      Blinking: Indicate the activity is occurring
      Off: Disconnected or fail
  • Lan-port
    •   Link /ACT: Green LED
        -Off: port disconnected
        -On: 10G/5G/2.5G/1G connected
        -Blinking: Data transmitting
      PoE: Amber LED
        -Off: PoE disconnected
        -PoE connected and power supplied
Reset Button
  • Reset configuration to factory default
PoE Budget
  • 130W
Power
  • External power supply
    100-240V AC, 50/60Hz
  • Output: 150W
Dimension
  • 166(L) x 97(W) x 28.6(H) mm
Temperature
  • Operating: 0°C to 50°C
  • Storage: -20°C to +70°C
Relative Humidity
  • 5%~90%, non-condensing



SW Specification

L2 Feature
  • Speed(100M/1G/2.5G/5G/10G)
  • Jumbo Frame
  • EEE
  • Port Isolation
  • Voice VLAN
  • MAC Base VLAN
  • Spanning Tree :
    802.1D(STP)
    802.1W(RSTP)
    802.1S(MSTP)
  • Link Aggregation :
    Static LA
    LACP
  • Mirror
  • Loop Prevention
  • IGMP Snooping(v1/v2/v3)
  • MLD Snooping(v1/v2)
  • Storm Control
  • Bandwidth Control: Rx/Tx rate control
  • LLDP
  • Static Unicast
  • Static Multicast Group
  • Multicast Unregister Group Filtering
  • GVRP
  • MVR
QoS
  • Port Base QoS
  • 802.1P Base QoS
  • DSCP Base QoS
Security
  • MAC learning limit
  • DoS
  • Authentication :
    Port Based 802.1X
    MAC Based 802.1X
    MAC Authentication
  • Radius Server
  • ACL
  • IP Source Guard :
    IPv4/IPv6
    DHCP Snooping
    ARP Inspection
Management
  • Http
  • Https
    SSL/TLS
  • Telnet
  • SSH
  • SNMP(v1/v2c/v3)
  • RMON
    Statistics
    History
    Alarm
    Event
  • System Log
  • NTP
  • Daylight Saving
  • Time Zone
  • 4 IP Interface
  • DNS
  • Cable Diagnostic
  • Dual Image
  • Firmware Upgrade by http
  • Configuration Backup & Restore
