PRODUCT / PoE Injector/Extender / RGT-1101P-E

1-to-1 10G Gigabit PoE+ Injector

RGT-1101P-E

■ IEEE802.3 10BASE-T
■ IEEE802.3u 100BASE-TX
■ IEEE802.3ab 1000BASE-T
■ IEEE802.3bz 2.5G/5GB BASE-T
■ IIEEE802.3an 10GBASE-T
■ IEEE802.3af PoE
■ IEEE802.3at PoE plus

Overview

The IEEE 802.3at (PoE+)/802.3af (PoE) compliant RGT-1101P-E Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.

Specifications

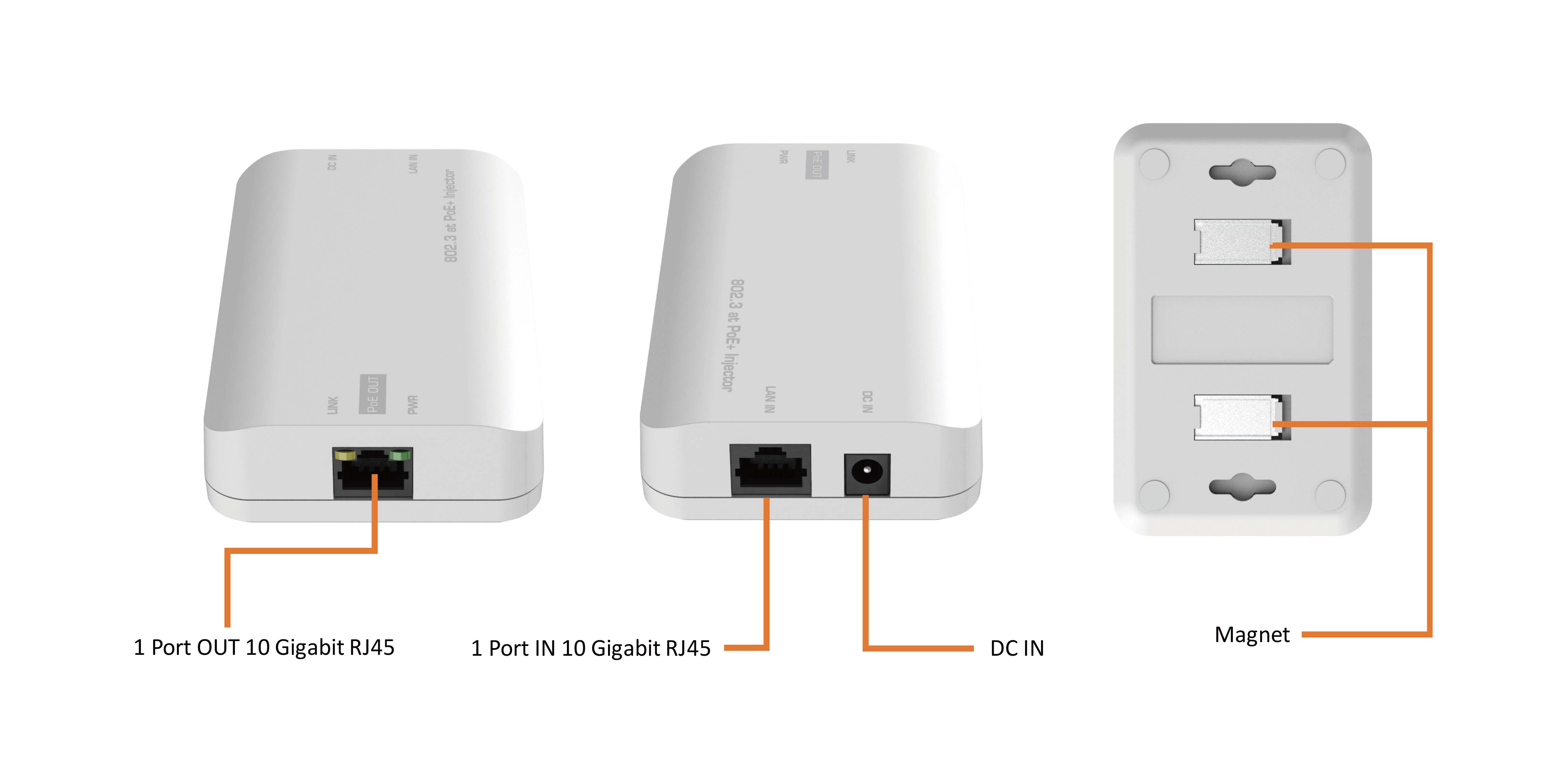

Interface
  • In (Data):1x 10GBASE-T port (data)
  • Out (Data+PoE): 1x 10GBASE-T PoE+ out port
LED Indication
  • Link On: LED with Amber
  • Power On: LED with Green
PoE Ports
  • 1-port IEEE802.3af/at
PoE Budget
  • 30W
Power Requirement
  • External Power Supply, 100-240V AC,
    50/60Hz Maximum (Adapter 54V DC, 0.74A)
Dimension
  • 109.74(L) x 70(W) x 28.6(H) MM
Temperature
  • Operating: 0°C ~ 40°C
  • Storage: -20°C ~ +70°C
Humidity
  • 5%~90%, non-condensing
