8-Port Gigabit Smart PoE+ Switch with 2 SFP

RGS-4288M-I

■ Complies with IEEE802.3 10BASE-T Ethernet standards
■ Complies with IEEE802.3u 100BASE-TX Fast Ethernet
■ IEEE 802.3ab 1000Base-T (Gigabit Ethernet)
■ IEEE 802.3az 1000BaseSX/LX)
■ IEEE 802.3az EEE(Energy Efficient Ethernet)
■ IEEE802.1Q Virtual LANs(VLAN)
■ IEEE802.3ad LACP( Link aggregation Control Protocol)
■ IEEE802.3af power over ethernet
■ IEEE802.3at Power over ethernet Plus

Overview

RGS-4288M-I is 8-port Gigabit lite smart PoE Ethernet switch with 2 SFP slots. The Switch provides 8x10/100/1000Mbps Auto- Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Each port can work as uplink port or common port. SFP is a hot-swappable input/output device that plugs into the SFP ports, linking the switch with the fiber-optic network.2 SFP slot can support either Multi or Single Mode SFP Modules. RGS-4288M-I provides a cost-effective, high performance, non-disruptive, and smooth evolution solution up to 1000M. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, and installation convenience. It is the best choice for increasing your speed.

Specifications

Interface
  • 8 x 10/100/1000 Mbps Auto-MDIX Gigabit Ethernet ports
  • 2 x 100/1000 Mbps SFP Slots for SFP fiber transceiver
  • 1x Reset button
MAC Address Table
  • 4 K
Jumbo Frame
  • 9 KB
LED Define
  • Power/System: Green LED
    •   Off: power off or fail
      On: power on
      Blinking: system booting up
  • PoE Alert: Green LED
    Off: No over PoE max power budget (50W)
    On: Over PoE max power budget (50W)
  • RJ 45 Port:
    LINK/ACT: bio-color LED
       Off : port disconnected or link fail
       Green on : 1000Mbps connected
       Amber on : 10/100Mbps connected
       Blinking : sending or receiving daata
    PoE:
       Off : PoE power output off
       Green on : PoE power output
  • PoE port : LED with Amber
    •      OFF : PoE disconnected or power not supplied
         ON : PoE connected and power supplied
PoE power pin-out
  • Alternative A (Pin 1,2/3,6)
PoE power budget
  • Alert: 50W
  • Budget: 60W
PoE Output power capacity
  • Maximum output :30W per each port
    1. Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+
    2. Automatically discover the connection of PD device and immediately sends power to it
    3. Auto disable port if the port current is over 700mA or short happens
    4. Priority default setting is lower port NO. has high priority

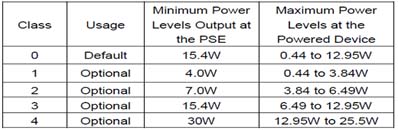

    5. The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.
    6.Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable
Power Requirement
  • AC-to-DC External power adapter
  • Input: 100-240V AC, 50/60 Hz,
  • Output: 55V DC/1.3A
Power Consumption
  • AC-69.81W，DC- 61.16W
Temperature
  • Operating: 0°C ~ 50°C
  • Storage: -40°C ~ +70°C
Humidity
  • Operating: 10% ~ 90% RH, non-condensing
  • Storage   : 5%~90% RH, non-condensing
Dimensions
  • 240 (L) X105 (w) X 27(H)mm
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
