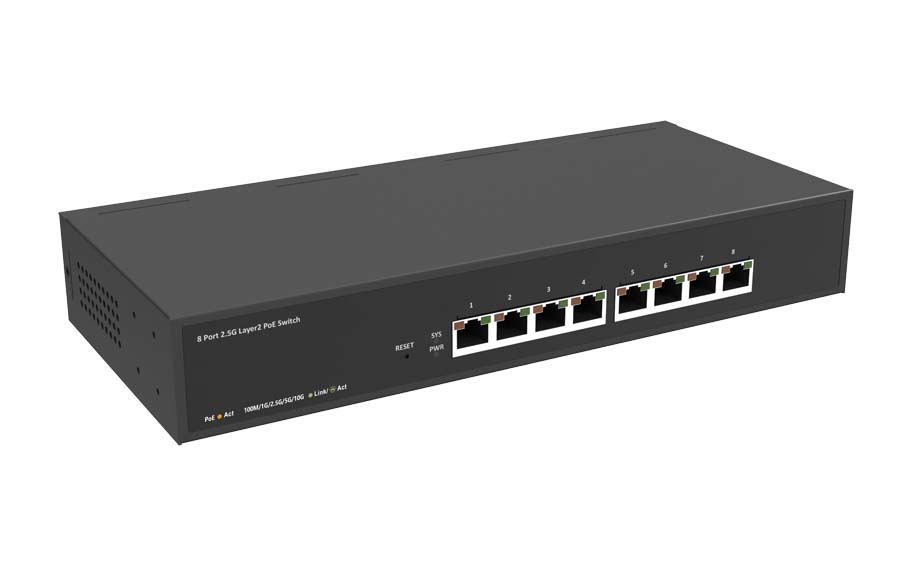

8-Port 2.5G Base-T Layer 2 PoE Switch

RNS-7088PM-E

■ Complies with IEEE802.3 10BASE-T Ethernet standards
■ Complies with IEEE802.3u 100BASE-TX Fast Ethernet
■ IEEE 802.3ab 1000Base-T (Gigabit Ethernet)
■ IEEE 802.3bz 2.5G BASE-T

Overview

RNS-7088PM-E is 8-port 2.5GLayer 2 PoE Switch. Adopt professional RTL9302C-CG switch chips. The Switch provides 8 x 2.5G Auto-Negotiation RJ45 ports. Every port can work as uplink port or common port.RNS-7088PM-E provides a cost-effective, high performance, non-disruptive, smooth evolution into N Base-T solution. The Switch delivers superior performance with improving workgroup, network bandwidth ,increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your speed.


Specifications

Interface
  • 8 x 2.5G RJ45 Ethernet port
MAC Address Table
  • 16 K
Jumbo Frame
  • 12 K
LED Define
  • PWR: Green LED
    •   Off: power off or fail
      On: power on
  • SYS: Amber LED
    Off: system is normal and ready
    On: system is not ready
  • 1-8 Port LED:
    LINK/ACT:
       Off: port disconnected or link fail
       Green on: 10/100/1000/ 2500 M bps connected
    Blinking: sending or receiving data
  • PoE :
    •      Amber Off: PoE disconnected
        Amber On: PoE connected and power supplied
Power
  • External power supply
    Input: 90~264VAC/47~63Hz
    Output: 150W
PoE Budget
  • 130W
Power
  • External power supply
    Input: 90~264VAC/47~63Hz
    Output: 150W
Temperature
  • Operating: 0°C ~ 50°C
  • Storage: -40°C ~ +70°C
Humidity
  • 5%~90%, non-condensing
Dimensions
  • 280(L) X 125 (w) X 44(H)mm
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
