RNS-B288PM-E

8-Port 2.5G PoE+ 2 port 10G SFP+ Layer 2 Switch

■ Auto MAC address learning
■ Store-and-Forwarding switching architecture
■ N-Way auto-negotiation, Auto MDI/MDIX support
■ Non-blocking architecture

Overview

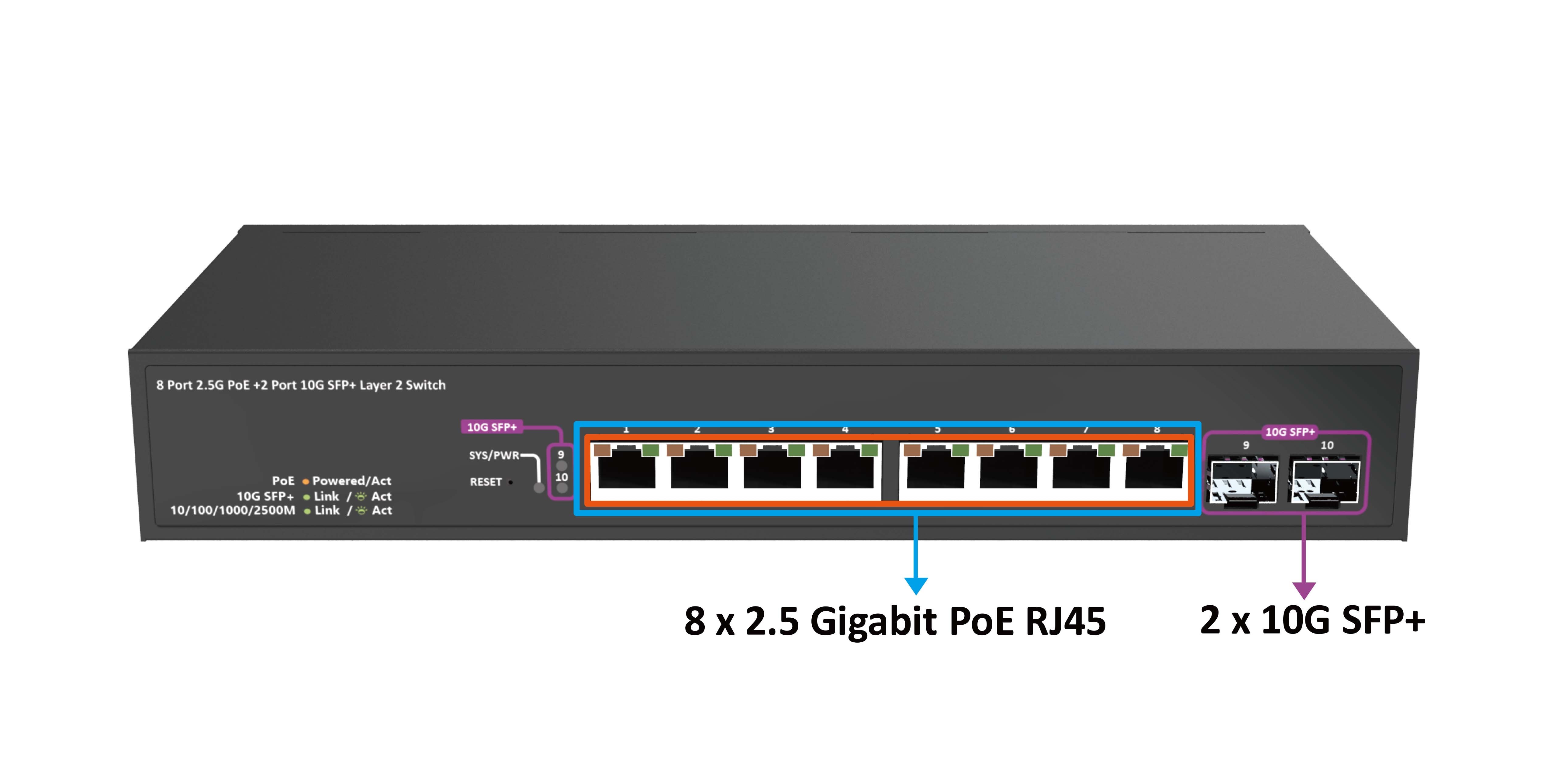

RNS-B288PM-E is 8 Port 2.5G Base-T Layer 2 PoE Switch with 2 port 10G SFP+. The Switch provides 8 x 2.5G Base-T+2 x 10G SFP+ ports. RNS-B288PM-E provides a cost-effective, high performance, non-disruptive, smooth evolution into N Base-T solution. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your speed.


HW Specifications

I/O ports
  • 8 Port 2.5G PoE Ethernet ports
  • 2x 10G SFP+
Standard
  • IEEE802.3 10BASE-T
  • IEEE802.3u 100BASE-TX
  • IEEE802.3ab 1000BASE-T
  • IEEE802.3bz 2.5G BASE-T
MAC Address Table
  • 16 k
Jumbo Frame
  • 12KB
PoE Ports
  • 8-port IEEE802.3 af/at
SPI Flash
  • 32MB
DDR3 ram
  • 256MB
LED Define
  • SYS/PWR: Green LED
    •   Off: power off or fail
      On: system is ready
      Blinking: system is not ready
  • SFP1: Green LED
    Off: Disconnected or fail
    On:10Gbps connected
    Blinking: Indicate the activity is occurring
  • 8 x 2.5 G Green LED
    Link /ACT: Green LED
    Off: port disconnected
    On:10/100/1000/ 2500 M bps connected
    Blinking: sending or receiving data
  • PoE: Amber LED
    Off: PoE disconnected
    On: PoE connected and power supplied
Reset Button
  • Reset configuration to factory default
PoE Budget
  • 130W
Power
  • External Power Supply, 100-240V AC,50/60Hz
  • Output : 150W
Dimensions
  • 280(L) x125(W) x43.5(H)mm
Temperature
  • Operating: 0 ~ 40℃
  • Storage : -20 ~ 70℃
Relative Humidity
  • 5%~90%, non-condensing



SW Specification

L2 Feature
  • Speed(100M/1G/2.5G/5G/10G)
  • Jumbo Frame
  • EEE
  • Port Isolation
  • Voice VLAN
  • MAC Base VLAN
  • Spanning Tree :
    802.1D(STP)
    802.1W(RSTP)
    802.1S(MSTP)
  • Link Aggregation :
    Static LA
    LACP
  • Mirror
  • Loop Prevention
  • IGMP Snooping(v1/v2/v3)
  • MLD Snooping(v1/v2)
  • Storm Control
  • Bandwidth Control: Rx/Tx rate control
  • LLDP
  • Static Unicast
  • Static Multicast Group
  • Multicast Unregister Group Filtering
QoS
  • Port Base QoS
  • 802.1P Base QoS
  • DSCP Base QoS
Security
  • MAC learning limit
  • DoS
  • Authentication :
    Port Based 802.1X
    MAC Based 802.1X
    MAC Authentication
  • Radius Server
  • ACL
  • IP Source Guard :
    IPv4/IPv6
    DHCP Snooping
    ARP Inspection
Management
  • System Log
  • NTP
  • Daylight Saving
  • Time Zone
  • 4 IP Interface
  • DNS
  • Cable Diagnostic
  • Dual Image
  • Firmware Upgrade by http
  • Configuration Backup & Restore
