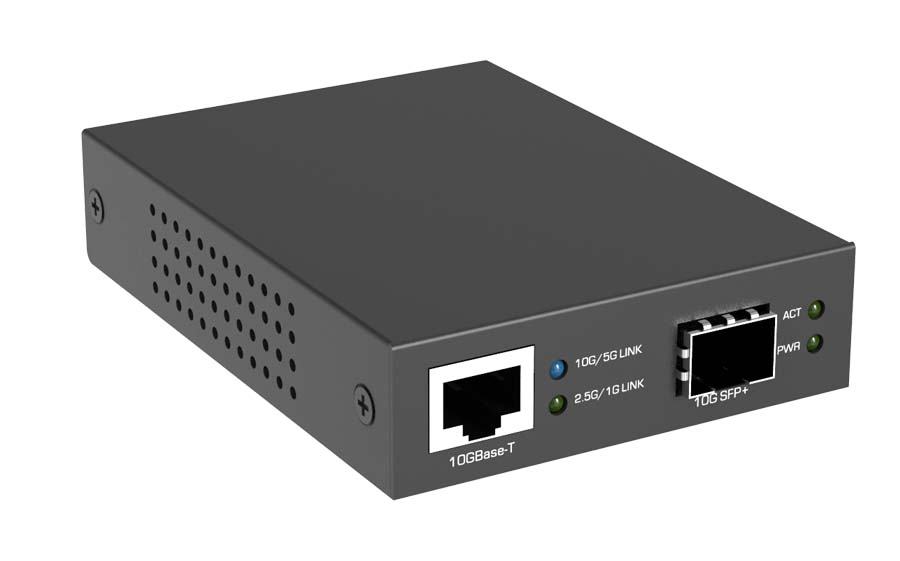

RXM-1SFNUS

10 Gigabit Ethernet to Fiber Media Converter

■ Compliant with IEEE802.3ab and IEEE802.3bz and IEEE 802.3an standard
■ Full-duplex and half-duplex operation with IEEE802.3x flow control and backpressure
■ Supports 1* 10G/5G/2.5G/1G BASE-T RJ-45 Port
■ Supports 1* 110G/5G/2.5G/1G SFP+ slot
■ Extends network connection to various lengths depending on SFP+
    transceiver capability
■ SFP slot accommodates multimode or single-mode modules
■ Support Link Fault Pass-Through (LFPT)y

Overview

RXM-1SFUNS is an Ethernet media converter providing a great solution for connecting copper Ethernet connection across fiber. It offers cost effective 10G/5G/2.5G/1G connection capability.
RXM-1SFNUS implement a smart detection algorithm to identify the inserted transceiver module capability. With the smart detection mechanism, it controls the copper side and fiber side to link with same speed and ensure traffic pass through the connection smoothly.
RXM-1SFNUS implement its own Link Fault Pass-Through (LFPT) function. With LFPT enabled, the loss of link on one side of media converter to be passed through to the other side, so that upstream equipment can see fault conditions that would otherwise be hidden by the media converter.



Specifications

Interface
  • 1x 10G/5G/2.5G/1G BASE-T Ethernet port
  • 1x 10G/5G/2.5G/1G SFP+ slot
Standards
  • Copper
    •   IEEE802.3an 10GBase-T
      IEEE802.3bz 5GBase-T
      IEEE802.3bz 2.5GBase-T
      IEEE802.3ab 1000Base-T
  • Fiber
    •   XFI
      5000Base-R
      2500Base-X
      1000Base-X(SGMII) Force Mode
Features
  • 100m at 10Gbps over Cat.6a/7
  • 100m at 5Gps over Cat.5e/6a/7
    • 100m at 2.5Gps over Cat.5e/6a/7
  • 100m at 1Gps over Cat.5e/6a/7
  • Extends network connection to various lengths depending on SFP+ transceiver capability
  • SFP+ slot accommodates Multimode and Single-mode modules
  • Smart Connection
  • Support Link Fault Pass-Through (LFPT)
LED Indication
  • PWR
    •   Green：Power on
      Off：Power off
  • ACT
    •   Green (Blinking) ：Data Tx/Rx is working
      Off：No link
  • 10G/5G Link
    •   Blue：10G or 5G connection on both copper and fiber ports
  • 2.5G/1G Link
    •   Green：2.5G or 1G connection on both copper and fiber ports
  • All LED except PWR LED is blinking twice if Dip switch is set to on(i.e., LFPT is enabled) during power on stage.

  • ALL LED is ON for 2 seconds if Dip switch is set to Off (i.e., LFPT is disabled) during power on stage.

  • All LED except PWR LED blink three times if unknown transceiver module is detected

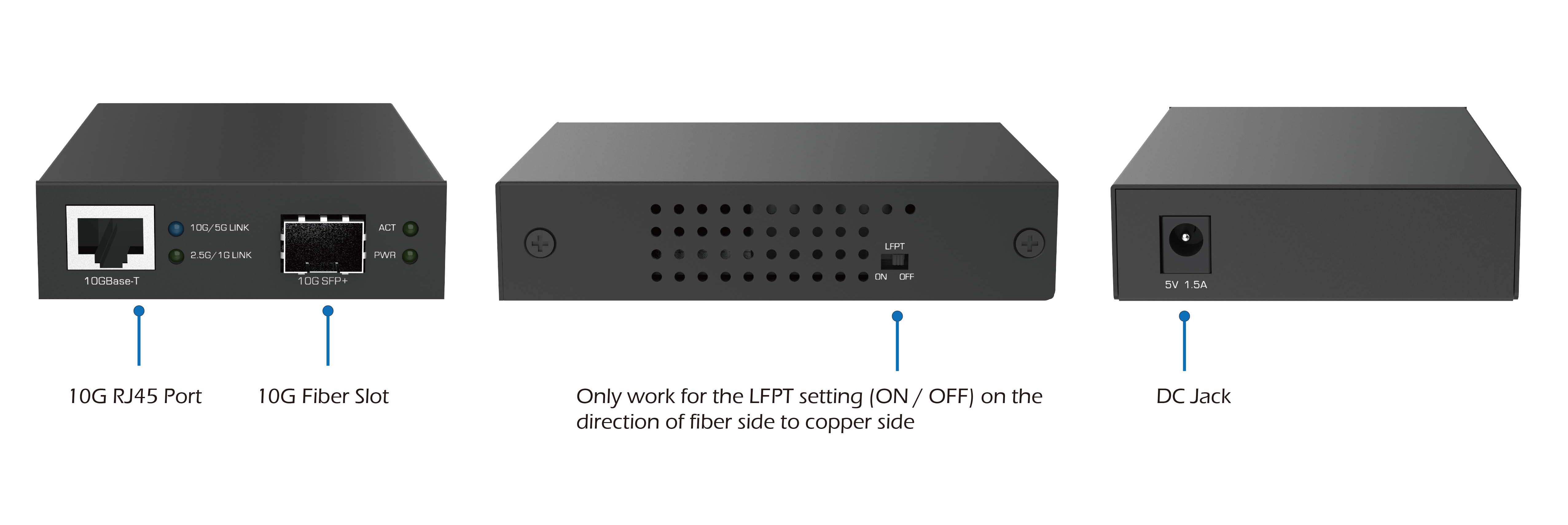

Dip-Switch Define
  • Only work for the LFPT setting (ON / OFF) on the direction of fiber side to copper side
  • Copper port is forced to link down when fiber link broken if the DIP is set to ON.
Power Requirement
  • External AC adapter 100 - 240V AC, 50/ 60 Hz
  • 5V DC 1.5A (DC Input)
Power Consumption
  • 2.9 W
Dimension
  • 102(L) x 75(W) x 22.2(H) mm
Weight
  • 188.5g
FAN Design
  • Fan-less Design
Temperature
  • Operating: 0°C to 50°C
  • Storage: -20°C to +70°C
Humidity
  • Operating: 0%~90% RH, non-condensing
  • Storage: 5%~90% RH, non-condensing
