PRODUCT / SWITCHES / RGS-1008M-E

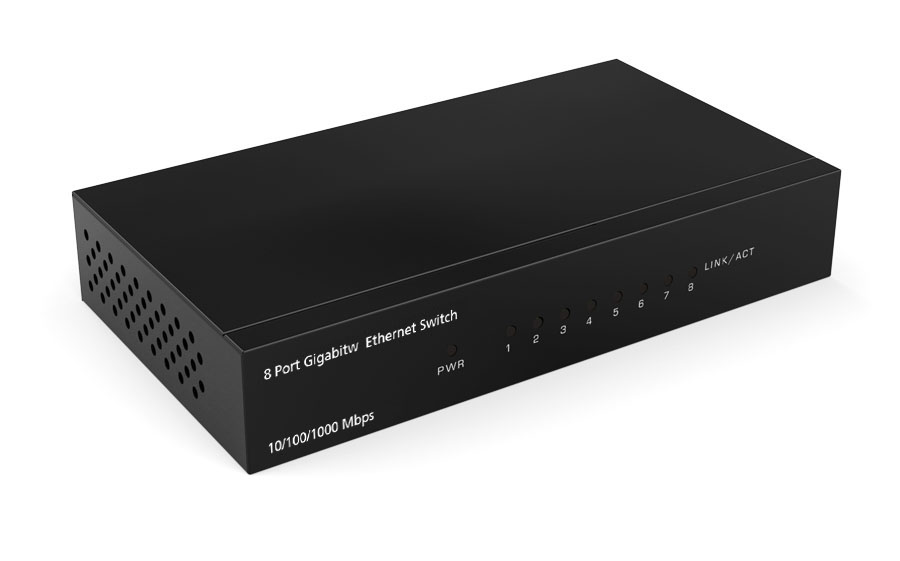

RGS-1008M-E

8 port Gigabit Ethernet Unmanaged Switch

■ Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
■ Supports auto MDI/MDI-X crossover detecting and auto correction
■ Supports full and half duplex for 10/100Mbps, and full duplex for 1000Mbps
■ Wire-speed packet filtering and forwarding rate
■ Store-and-forward architecture filters fragment & CRC error packets
■ Supports IEEE802.3az energy efficient Ethernet function
■ Switching Fabric : 16Gbps

Overview

RGS-1008M is 5-port 10/100/1000Mbps unmanaged Gigabit Ethernet Switch. The Switch provides 8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. RGS-1008M provides a cost-effective, high performance, non-disruptive, smooth evolution into 1000M solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your speed.


Specifications

Interface
  • 5*10/100/1000 Mbps RJ-45 ports
MAC Address Table
  • 8 K
Buffer Memory
  • 256KB
Jumbo Frame
  • 9216-bytes
LED Define
  • 1*power LED(Power: Green)
    Light off : Power off or fail
    Light on : Power on
  • 8*port LEDs(Link/Act: Green)
    Link/Activity:
    ‧ Off: port disconnect or link fail
    ‧ Green on: 10/100/1000Mpbs connected
    ‧ Blinking: sending or receiving data
Power Requirement
  • AC-to-DC power adapter
  • Input: 100-240V AC
  • Output: 5VDC/1A
Temperature
  • Operating: 0°C ~ 40°C
  • Storage: -20°C ~ 70°C
Humidity
  • Operating: 10% ~ 90% RH, non-condensing
  • Storage   : 5%~90% RH, non-condensing
Dimensions
  • 193(L) X 84 (w) X 26(H)mm
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
