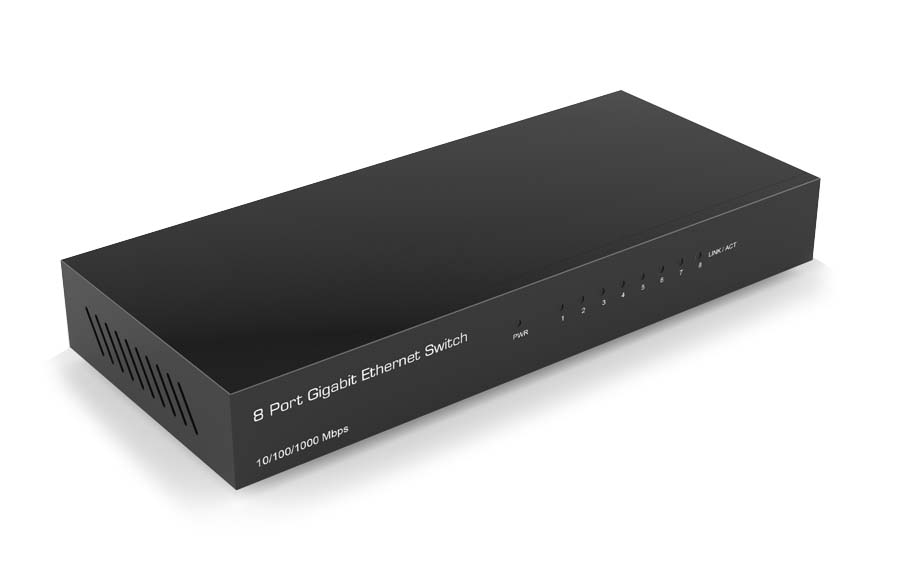

RGS-1008M-I

8 port Gigabit Ethernet Unmanaged Switch

Complies with IEEE802.3 10BASE-T Ethernet standards
■ Complies with IEEE802.3u 100BASE-TX Fast Ethernet
■ Supports IEEE802.3ab 1000BASE-T
■ Supports IEEE802.3x Flow control and Back-pressure
■ Supports IEEE802.3az EEE
■ Auto MAC address learning
■ Store-and-Forwarding switching architecture
■ N-Way auto-negotiation, Auto MDI/MDIX support
■ Non-blocking architecture
■ Link-on cable length power saving
■ Link-down power saving
■ Switching Fabric : 16Gbps

Overview

RGS-1008M-I is 8-port 10/100/1000Mbps unmanaged Gigabit Ethernet Switch.The Switch provides 8 x10/100/1000Mbps Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. RGS-1008M-I provides a cost-effective, high performance, non-disruptive, smooth evolution into 1000M solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your speed.


Specifications

Interface
  • 8*10/100/1000 Mbps RJ-45 ports
MAC Address Table
  • 4 K
Buffer Memory
  • 196KB
Jumbo Frame
  • 9K
LED Define
  • Power : Green LED
  •   OFF: power off or fail
      ON: power on
  • Port LED Link/Activity
    Link/Activity:
    Off: port disconnected or link fail
    Green on: 1000Mbps connected
    Orange on: 10/100 Mbps connected
    Blinking: sending or receiving data
Power Input
  • Internal power supply, 100-240VAC, 50/60Hz
Temperature
  • Operating: 0°C ~ 40°C
  • Storage: -40°C ~ 70°C
Humidity
  • Operating: 10% ~ 90% RH, non-condensing
  • Storage   : 5%~90% RH, non-condensing
Dimensions
  • 98(L) X 78 (w) X 28(H)mm
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
