PRODUCT / SWITCHES / RGS-1016M-I

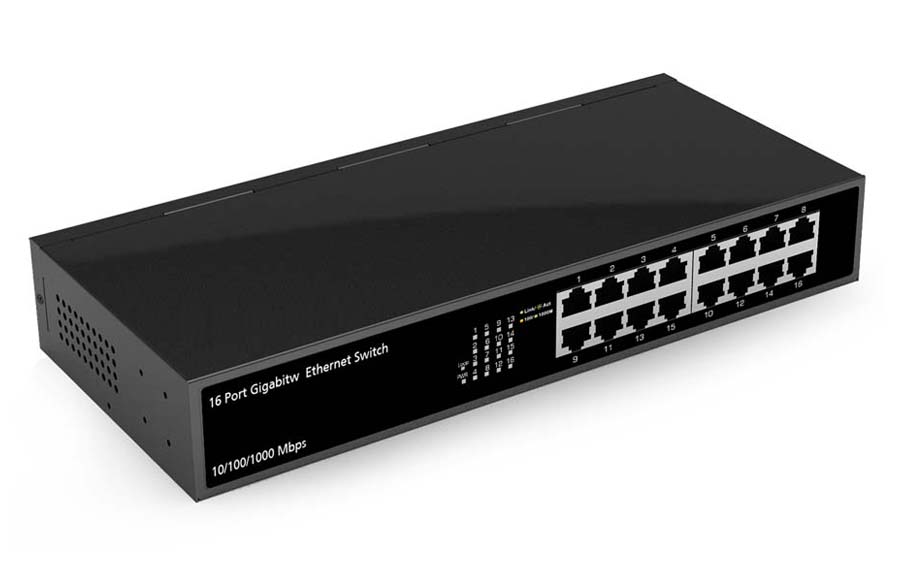

RGS-1016M-I

16 port Gigabit Ethernet Unmanaged Switch

■ Complies with IEEE802.3 10BASE-T Ethernet standards
■ Complies with IEEE802.3u 100BASE-TX Fast Ethernet
■ Supports IEEE802.3ab 1000BASE-T
■ Supports IEEE802.3x Flow control and Back-pressure
■ Supports IEEE802.1p
■ Supports IEEE802.3x
■ Switching Fabric : 32Gbps

Overview

RGS-1016M-I is 16-port Gigabit Ethernet Switch, Metal housing. the Switch provides 16* 10/100/1000 Mbps Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your speed.


Specifications

Interface
  • 816*10/100/1000 Mbps RJ-45 ports
MAC Address Table
  • 8 K
Buffer Memory
  • 512KB
Jumbo Frame
  • 9KB
LED Define
  • Power : Green LED
    •   OFF: power off or fail
      ON: power on
  • Port LED Link/Activity
    Link/Activity:
    Off: port disconnected or link fail
    Green on: 1000Mbps connected
    Orange on: 10/100 Mbps connected
    Blinking: sending or receiving data
Power Input
  • Internal power supply, 100-240VAC, 50/60Hz
Power Consumption
  • 11.87 W
Temperature
  • Operating: 0°C ~ 40°C
  • Storage: -40°C ~ 70°C
Humidity
  • Operating: 10% ~ 90% RH, non-condensing
  • Storage   : 5%~90% RH, non-condensing
Dimensions
  • 280 (L) X 125 (w) X 43.5(H)mm
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
