RGS-12500M-E

5-Port Giga With 2-Port 2.5G SFP Unmanaged Switch

■ Auto MAC address learning
■ Store-and-Forwarding switching architecture
■ N-Way auto-negotiation, Auto MDI/MDIX support
■ Non-blocking architecture
■ Link-down power saving

Overview

5-Port Giga With 2-Port 2.5G SFP Unmanaged Switch. Adopt professional EN8850 switch chips, The Switch provides 5 x 1G Auto-Negotiation RJ45 ports + 2 x2.5G Auto-Negotiation SFP ports. Every port can work as uplink port or common port. RGS-12500M-E provides a cost-effective, high performance, non-disruptive, smooth evolution into NBase-T solution. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your speed.


Specifications

Interface

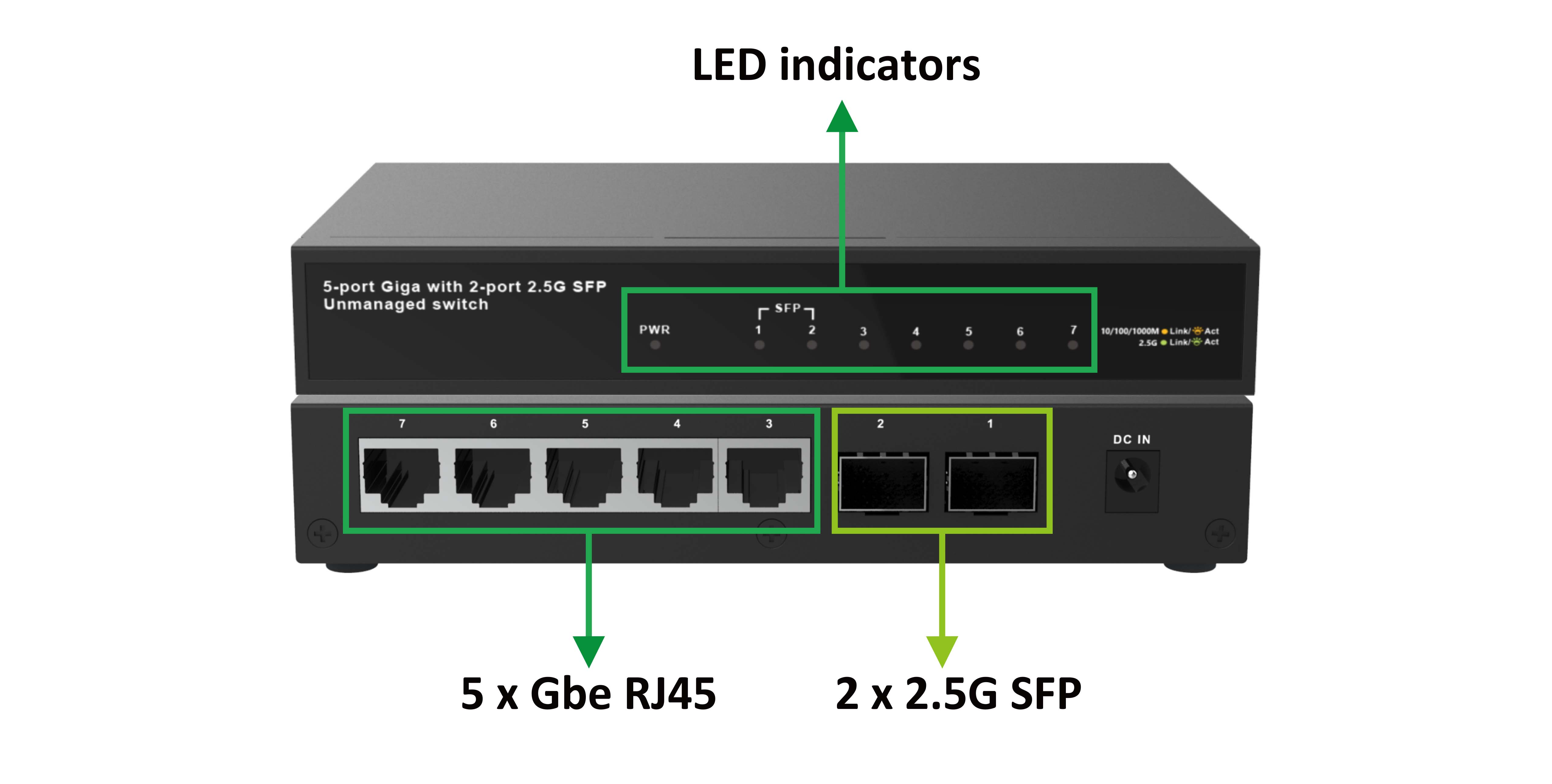

  • 5 x 1 G RJ45 + 2 x 2.5G SFP Ethernet port
Standard
  • IEEE802.3u 100BASE-TX
  • IEEE802.3ab 1000BASE-T
  • IEEE802.3bz 2.5G BASE-T
MAC Address Table
  • 2 K
Buffer Memory
  • 3Mbit
Jumbo Frame
  • 15K bytes
LED Define
  • Power: Green LED
    •   Off: Power off or fail
      On: Power on
  • 1-7 Port LED:
    Link/ACT:
    Off: Port disconnected or link failed
    Green on: 10/100/1000/2500 Mbps connected
    Amber on: 100/1000Mbps connected
  • Blinking: sending or receiving data
Power
  • External power supply
  • Input: 90~264VAC/47~63Hz
  • Output: 12V/1.5A
Temperature
  • Operating: 0°C ~ 50°C
  • Storage: -40°C ~ 70°C
Humidity
  • 5%~90% RH, non-condensing
Dimensions
  • TBD
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
