PRODUCT / SWITCHES / RGS-2208M-E

8-Port Gigabit Smart Ethernet Switch with 2 SFP

RGS-2208M-E

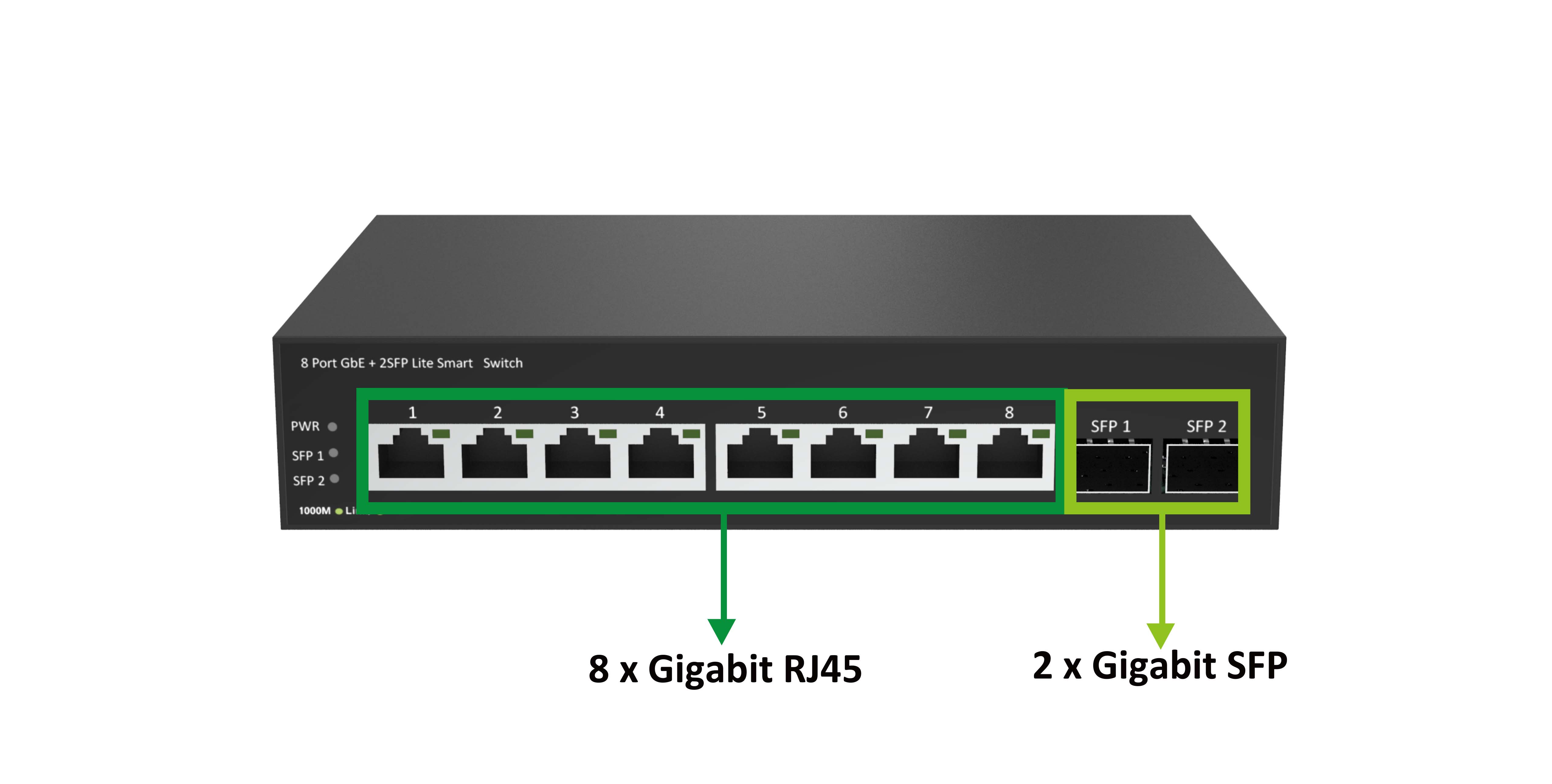

■ Support 8 x 10/100/1000 Mbps Auto-Negotiation RJ-45 ports and Auto MDI/MDIX
■ Supports 2 x1000Base-SX/LX SFP Slot either Multi or Single Mode SFP Modules and Hot Swappable
■ Easy-to-use web-based management interface
■ Support LACP, VLAN, QoS and IGMP snooping
■ Bandwidth control per port
■ IEEE802.1p QoS with queue scheduling support
■ Fan-less wall-mounted metal housing

Overview

RGS-2208M-E is 8-port Gigabit Ethernet with 2 SFP Slots switch. Adopt professional switch chips, the Switch provide 8x10/100/1000Mbps Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. SFP is a hot-swappable input/output device that plugs into the SFP ports, linking the switch with the fiber-optic network.2 SFP slot can support either Multi or Single Mode SFP Modules. RGS-2208M-E provides a cost-effective, high performance, non-disruptive, smooth evolution into 1000M solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your speed.


HW Specifications

Interface
  • 8 x 10/100/1000 Mbps Auto-MDIX Gigabit Ethernet ports
  • 2 x 100/1000 Mbps SFP Slots for SFP fiber transceiver
  • 1 x Reset Button
Standard
  • IEEE802.3 10Base-T(Ethernet)
  • IEEE802.3u 100Base-TX(Fast Ethernet)
  • IEEE802.3ab 1000Base-T(Gigabit Ethernet)
  • IEEE802.3z 1000BaseSX/LX
  • IEEE802.3az EEE(Energy Efficient Ethernet)
  • IEEE802.1Q Virtual LANs(VLAN)
  • IEEE802.3ad LACP(Link Aggregation Control Protocol)
LED Define
  • Power: Green
    •   Off: Power off or fail
      On: Power on
  • Fiber(link): Green
    On: Connection (or link) at 1000Mbps
    Blinking: Indicate the activity is occurring
    Off: Disconnected or fail
  • LAN(Link/Activity): Green:
    On: Connection (or link) at 10/100/1000Mbps
    Blinking: transmitting or receiving data
    Off: Disconnected or fail
MAC Address Table
  • 4K
Switching Capacity
  • 20 Gbps
Jumbo Frame
  • 9k bytes
Power
  • External power supply
  • Input: 100~240VAC/50~60Hz
  • Output: 5V/2.5A
  • Full load power consumption:6W
Dimensions
  • 190(L) x120(W) x38(H)mm
Temperature
  • Operating: 0 ~ 40℃
  • Storage : -20 ~ 70℃
Relative Humidity
  • Operating : 10%~90% RH,non-condensing
  • Storage : 5%~90% RH, non-condensing



SW Specification

VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Voice VLAN
  • Port Isolation
LACP
  • Static LA
  • IEEE 802.3ad Link Aggregation Control Protocol
Mirror
  • One to one
  • Many to one
QoS
  • Port Base QoS
  • 802.1P Base QoS
  • DSCP Mode QoS
  • Queue Scheduling: Strict Priority (SP), Weighted Round Robin (WRR)
Loop Prevention
  • Support Loop Prevention
Multicast
  • IGMP Snooping v1/v2
  • Static Multicast
Rate Control
  • RX rate Control
  • TX rate Control
Storm Control
  • Broadcast
  • Multicast
  • Unknown frames
EEE
  • Support 802.3az Power Saving
Spanning Tree
  • IEEE 802.1D STP (spanning tree protocol)
  • IEEE 802.1W(RSTP)
Management
  • Http
  • SNMP(v1/v2c)
  • SNMP Trap
Flow Control
