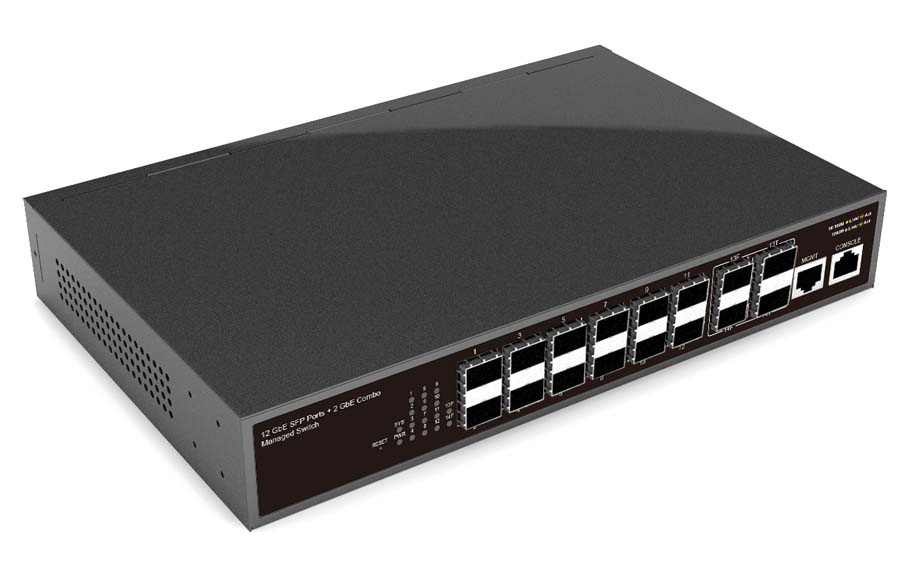

12 GbE SFP Ports + 2 GbE Combo Layer 2 Switch

RGS-7B02M-I

■ All 1G Ethernet ports are tri-speed 10/100/1000 Mbps ports
■ Integrated copper transceivers are compliant with IEEE 802.3ab
■ Four megabits of integrated shared packet memory
■ Fully non-blocking wire-speed switching performance for all frame sizes
■ Eight priorities and eight queues per port
■ Dual leaky bucket policing per queue and per port
■ DWRR scheduler/shaper per queue and per port with a mix of strict and weighted queues
■ 256 TCAM-based egress tagging entries
■ Up to 256 TCAM-based classification entries for Quality of Service (QoS) and VLAN membership
■ Up to 512 host identity entries for source IP guarding
■ 256 TCAM-based security enforcement entries

Overview

RGS-7B02M-I series Managed Switch are next-generation Fiber Switch offering full suite of L2 features and additional 1GbE uplink connections, advanced L3 features Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks or backbone via fibber connections. RGS-7B02M-I provides 12/ GbE SFP ports, 2 Optical Fiber SFP, 2 Port Combo, 1 Managed RJ45 ports and RJ45 Console port with built-in AC and DC dual power supply. RGS-7B02M-I also provides has the Web-based and CLI based configuring .


Specifications

Interface
  • Managed Ports : 10/100BaseT(X) x 1
  • Fiber Ports : 100/1000Base SFP x 14
  • Console Port : RS-232 (RJ-45)
  • Button : Reset button
  • Uplink Port : 2 x Optical Fiber SFP type interface + 2x10/100/1000 copper ports(Combo)
Standard
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3z 1000Base-X Gigabit/s Ethernet over Fiber-Optic
  • IEEE 802.3az EEE (Energy Efficient Ethernet)
  • IEEE 802.3x Flow control for Full Duplex
  • IEEE 802.1d STP (Spanning Tree Protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree Protocol )
  • IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
  • IEEE 802.1Q Virtual LANs (VLAN)
  • IEEE 802.1X Port based and MAC based Network Access Control, Authentication
  • IEEE 802.1ad Stacked VLANs, Q-in-Q
  • IEEE 802.1p LAN Layer 2 QoS/ CoS Protocol for Traffic Prioritization
  • IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
  • IEEE 802.1ax LACP (Link aggregation control protocol)
MAC Address Table
  • 8 K
Transmission Method
  • Store-and-Forward
Jumbo Frame
  • 9KB
LED Define
  • Power : Green LED
    •   OFF: power off or fail
      ON: power on
  • System: Green LED
    Off: power off or fail
    On: system is working.
    Blinking: system booting up
  • SFP LED:
    Off: disconnected or fail
    Green: 1000Mbps connected
    Amber: 10/100Mbps connected
    Blinking: sending or receiving data

  • Combo LED :
    Off: disconnected or fail
    Green: 1000Mbps connected
    Amber: 100Mbps connected
    Blinking: sending or receiving data
Button
  • Reset Button
Power Requirement
  • Internal power supply: 100-240VAC, 50/60Hz
Temperature
  • Operating: 0°C ~ 50°C
Humidity
  • Operating   : 5%~95% RH, non-condensing
Dimensions
  • 280 (L) X 180 (w) X 44(H)mm
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
