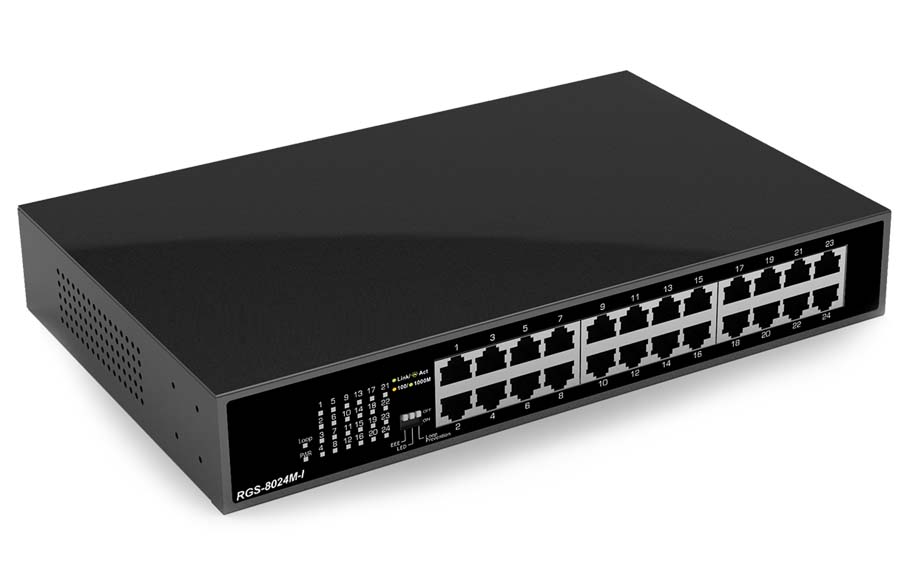

RGS-8024M-I

24-Port Gigabit Ethernet Unmanaged Dip Switch

■ Complies with IEEE802.3 10BASE-T Ethernet standards
■ Complies with IEEE802.3u 100BASE-TX Fast Ethernet
■ Supports IEEE802.3ab 1000BASE-T Gigabit Ethernet
■ Support Dip-Switched to control IEEE802.3az Disable and Enable
■ Support Dip-Switched to control Loop Detection/Prevention Disable and Enable
■ Support Dip-Switched to control CEO LED Disable and Enable
■ Switching Fabric : 48Gbps

Overview

RGS-8024M-I is 24 port Gigabit Ethernet Dip Switch, Metal housing with three Dip Switch to support IEEE802.3az, Loop detection / prevention and ECO LED enable or disable.The Switch provides 24* 10/100/1000 Mbps Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your speed.


Specifications

Interface
  • 24*10/100/1000Mbps RJ-45 ports
MAC Address Table
  • 8 K
Buffer Memory
  • 512 KB
Jumbo Frame
  • 9KB
LED Define
  • Power : Green LED
    •   OFF: power off or fail
      ON: power on
  • port LED Link/Activity
    OFF : port disconnected or link fail
    Green on : 1000Mbps connected
    Orange on : 10/100 Mbps connected
    Blinking : sending or receiving data
  • Loop LED Link/Activity
    Loop LED is OFF, If there is no Loop occurred or loop was relieved
    Loop LED is ON , If there is Loop occurred, and which ports loop occurring, high port LED will be OFF
Dip-Switch Define
  • EEE Switch
    ON: Enable IEEE 802.3az
    OFF: Disable IEEE 802.3az
  • ECO LED Switch
    ON: Power and ports LED are Off but function still running
    OFF: Power and ports LED are Light on
  • Loop Prevention Switch
    ON: If there is no Loop occurred, Loop LED is OFF
            If there is Loop occurred, Loop LED is blinking and which ports loop occurring, port LED will be OFF
            If loop was relieved, Loop LED is OFF
            If loop still occurred or prevented, Loop LED will keep blinking.
    Off: Either loop occurred or not, Loop LED is OFF
Power Input
  • Internal power supply, 100-240VAC, 50/60Hz
Temperature
  • Operating: 0°C ~ 50°C
  • Storage: -40°C ~ +70°C
Humidity
  • Operating: 10% ~ 90% RH, non-condensing
  • Storage   : 5%~90% RH, non-condensing
Dimensions
  • 280 (L) X 180 (w) X 43.5(H)mm
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
