PRODUCT / SWITCHES / RNS-10800M-E

RNS-10800M-E

8-Port 2.5G Base-T Unmanaged Switch

■ Auto MAC address learning
■ Store-and-Forwarding switching architecture
■ N-Way auto-negotiation, Auto MDI/MDIX support
■ Non-blocking architecture
■ Link-down power saving

Overview

The RNS-10800M-E is an 8-port 2.5G unmanaged Ethernet switch. Adopt the professional RTL8373N switch chipset, providing 8 x 2.5G auto-negotiation RJ45 ports. Each port can function as either an uplink port or a regular port. The RNS-10800M-E offers a cost-effective, high-performance, and seamless evolution into an NBASE-T solution. The switch delivers superior performance by enhancing workgroup efficiency, increasing network bandwidth, expanding the number of network nodes, and offering greater flexibility and installation convenience. It is the best choice for increasing your speed.



Specifications

Interface

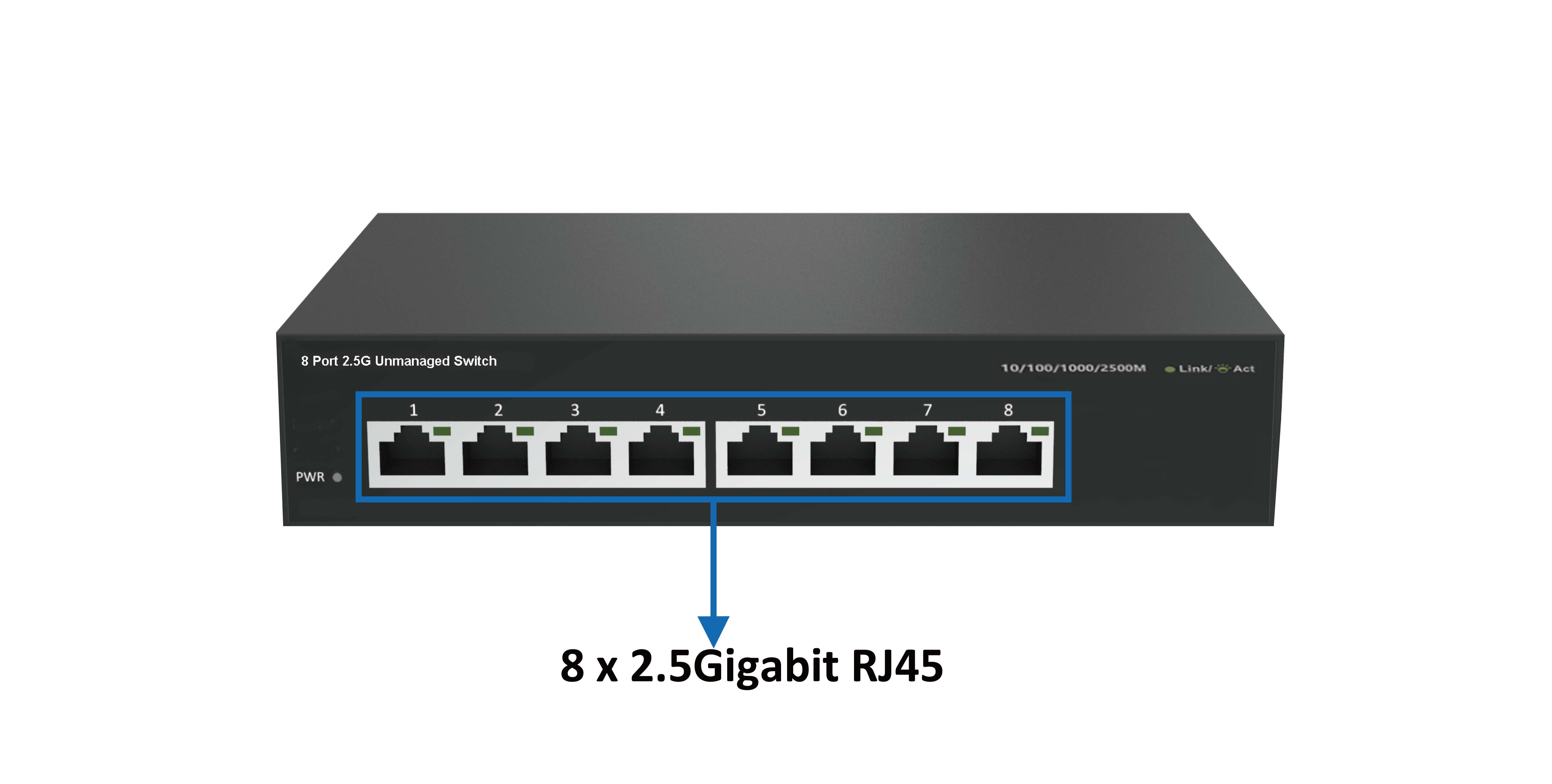

  • 8 x 2.5G RJ45 Ethernet port
Standard
  • IEEE 802.3x Flow control
  • IEEE 802.3az EEE
  • IEEE802.3 10BASE-T
  • IEEE802.3u 100BASE-TX
  • IEEE802.3ab 1000BASE-T
  • IEEE802.3bz 2.5G BASE-T
MAC Address Table
  • 4 K
Buffer Memory
  • 1MB
Jumbo Frame
  • 12K
LED Define
  • Power: Green
    •   Off: Power off or fail
      On: Power on
  • 1-8 Port LED:
    Link/ACT:
    Off: Port disconnected or link failed
    Green on: 10/100/1000/2500 Mbps connected
    Blinking: sending or receiving data
Power
  • External power supply
  • Input: 90~264VAC/47~63Hz
  • Output: 12V/1.5A
Temperature
  • Operating: 0°C ~ 50°C
  • Storage: -20°C ~ 70°C
Humidity
  • 5%~90% RH, non-condensing
Dimensions
  • 190(L) X 120 (w) X 38(H)mm
Certifications
  • CE/FCC/LVD compliance
RoHS
  • RoHS compliance
