PRODUCT / USB PRODUCY / RCU-1201-RG

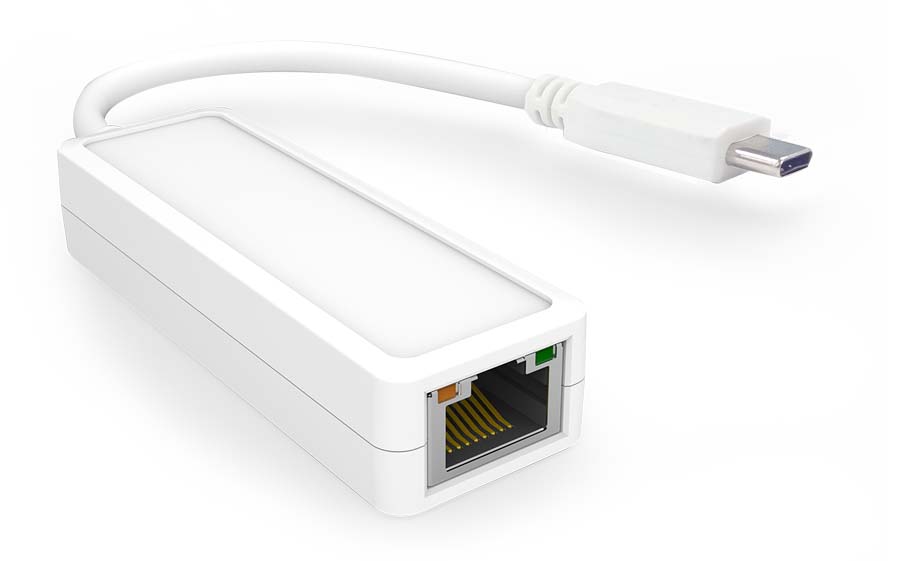

RCU-1201-RG

USB Type-C to Gigabit Ethernet

■ Support USB Spec. Type-C,3.0, 2.0 and 1.1
■ Support parallel detection and automatic polarity correction
■ Support crossover detection and auto-correction
■ Support advanced link down power saving during Ethernet cable is unpluggeds
■ Support auto detach power saving, soft-disconnected from USB host when Ethernet cable is unplugged
■ Support Wake on LAN (Suspend mode)

Overview

The RBU-1201-GE is a USB to Gigabit Ethernet Adapter that allows you to instantly connect to a 10/100/1000 Mbps network from a USB enabled desktop or Notebook PC. Compliant with USB 3.0 and backwards compatible with the USB 2.0, USB1.0 and 1.1. It supports dynamic cable length detection and dynamic power adjustment Green Ethernet( Gigabit mode only).



Specifications

Standards
  • IEEE802.3 and IEEE802.3u
  • IEEE802.3X flow control for full duplex and back pressure flow control for half duplex
  • IEEE802.3az energy efficient Ethernet function
  • All USB 3.0 power saving modes
Interface
  • 1xEthernet port,10/100/1000 Mbps
System Compatibility
  • Windows XP / Vista / Win 7 / Win 8 / Win 10 / Mac OS 10.x and Linux
LED Define
  • 1*Orange LED for speed (1000Mbps)
  • 1*Green LED for speed (10/100Mbps)
  • 1*Green LED for link (Data transferring: blinking)
USB Power
  • Bus-powered
Temperature
  • Operating : 0 to 45 °C (32 to 113 °F)
  • Storage : -20 to 70 °C (-4 to 158 °F)
Humidity
  • Operating : 10% to 90% , non-condensing
  • OStorage : 5% to 95% , non-condensing
Dimensions
  • 72 (L) x 24.5 (W) x 14.88 (H) mm
