PRODUCT / USB PRODUCY / RDU-1900-10G

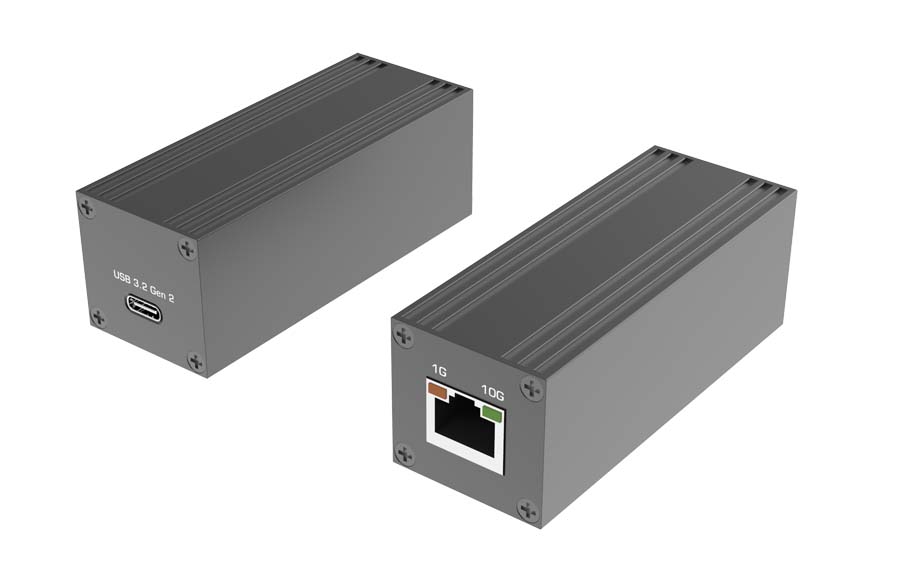

RDU-1900-10G

USB Type-C to Gigabit Ethernet

■ Supports USB 3.2 Gen2 x2, USB 3.0, 2.0, and 1.1 specifications
■ USB Type-C interface with parallel detection and automatic polarity correction
■ Ethernet crossover detection and auto-correction
■ Advanced link-down power saving mode when Ethernet cable is unplugged
■ Auto-detach function for soft-disconnection from USB host when Ethernet cable is unplugged
■ Supports Wake on LAN (WoL) to wake device from suspend mode
■ Bus-powered design with support for multiple USB power saving modes to reduce power consumption

Overview

The RDU-1900-10G is a compact and high-speed Type-C to 10GBASE-T Ethernet adapter designed for users seeking fast and stable wired network connections. Supporting multi-gigabit Ethernet speeds of up to 10Gbps, this adapter delivers reliable performance for data-intensive applications without requiring an external power supply. Equipped with a durable aluminum alloy shell and powered via the USB 3.2 bus, it offers seamless connectivity and excellent heat dissipation. The device supports Windows, macOS, and Ubuntu Linux with native or driver-based compatibility, making it a versatile solution for upgrading network speeds on modern computers.System Specifications.



Specifications

Standard
  • IEEE 802.3 10GBASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3bz 2.5G/5GBASE-T Multi-Gigabit Ethernet
  • IEEE 802.3x Flow Control for full duplex and back pressure flow control for half duplex
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Supports all USB power saving modes
I/O ports
  • 1 x 10GBASE-T RJ45-100M/1G/2.5G/5G/10G
  • 1 x USB 3.2 Gen2 Type-C
LED Define
  • Left : Yellow LED
    On- For 100M/1G/2.5G/5G Active
    Off-Disconnected or fail
    Blinking-sending or receiving data
  • Right : Green LED
    On- For 10G Active
    Off- Disconnected or fail
    Blinking-sending or receiving data
Compatible OS
  • Windows 10/11, macOS 10.8/10.9-10.15 Linux 6.10
Power
  • Bus-powered
Temperature
  • Operating : 0 to 40 °C (32 to 104 °F)
  • Storage : -20 to 70 °C (-4 to 158 °F)
Humidity
  • Operating : 10% to 90% , non-condensing
  • OStorage : 5% to 95% , non-condensing
Dimensions
  • 83.3 (L) x 32 (W) x 30 (H) mm
